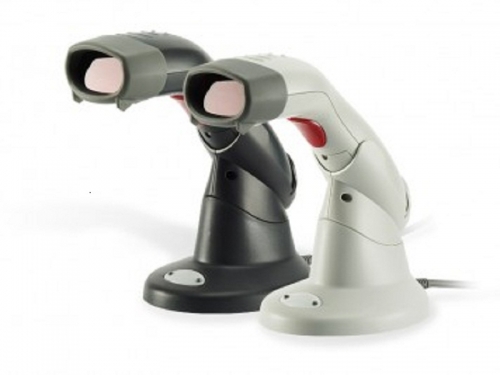

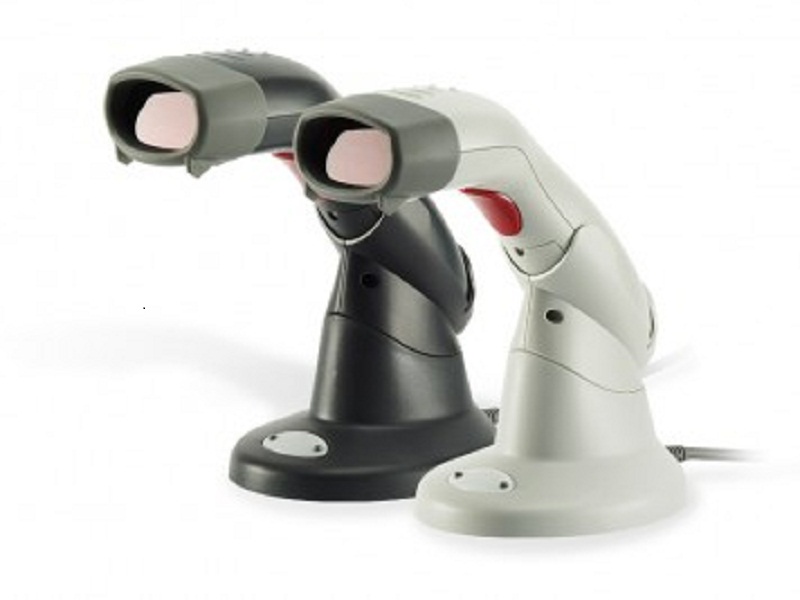

Máy đọc mã vạch Zebex Z-3051BT

Hãng sản xuất :ZEBEXCông nghệ quét :LaserTốc độ quét :100 scan/sChiều rộng mã vạch tối thiểu :5 mil @ PSC = 90%Số tia quét :1Cổng kết nối :• PS/2

• USB

• RS232Tính năng :Light Source

Depth of Field

Scan Rate

Number of Scan Lines

Minimum Bar Width

Print Contrast

Indicators (LED)

Beeper Operation

System Interfaces650 nm visible laser diode (VLD)

15 – 260 mm (UPC/EAN 100%, PCS=90%)

100 scans per second

Single

5 mil @ PCS=90% (0.1 mm actually)

30% @ UPC/EAN 100%

Three-color LED (green, red & blue)

Programmable tone & beep time

Keyboard, RS-232C, HID USB, wand

PHYSICAL

Dimensions
Weight
Cable(L)106.7 × (D)58.0 × (H)155.0 mm (device only)
200 g (stand excluded); 563 g (stand included)
Standard 2.0M straight

ELECTRICAL

Input Voltage
Battery
Operating Autonomy
Recharge Time9V DC 1A at charging
2 AA NiMH rechargeable batteries
Over 24,000 reads at full charged by scanning once per 10 seconds
5 hours (max.)

RADIO COMMUNICATION

Protocol
Radio Frequency
Working RangeSerial Protocol Profile (SPP)
2.4 – 2.48 GHz
Up to 100M / 75M (depends on operating environment)

REGULATORY

Laser Class
EMC
RadioCDRH Class II; IEC 60825-1: Class 1
CE & FCC DOC compliance
FCC TCB, EN 300 328, ARIB STD-T66

ENVIRONMENTAL

Operating Temperature
Storage Temperature
Humidity
Light Levels
Drop Durability
0°C – 40°C (32°F – 104°F)
-20°C – 60°C (-4°F – 140°F)
5% – 95% RH (non-condensing)
4,500 Lux (fluorescence)
Designed to withstand 1.0M drops

Kích thước (mm) :106.7x58x155Trọng lượng (g) :200Xuất xứ :Taiwan
